YSS128C Thermal Break Aluminium Sliding / Lift-and-Slide Door

YSS128C is an ENGGIA sliding / lift-and-slide door system with 5mm+20A+5mm clear tempered double glazing and 2.0mm aluminum profiles.

Sliding / Lift-and-Slide Door
5mm+20A+5mm clear tempered double glazing
2.0mm aluminum profiles

YSS128C is an ENGGIA sliding / lift-and-slide door system with 5mm+20A+5mm clear tempered double glazing and 2.0mm aluminum profiles.

Choose the opening configuration, hardware and installation method for your project. Share the opening dimensions, drawings and site requirements so the final configuration can be confirmed.

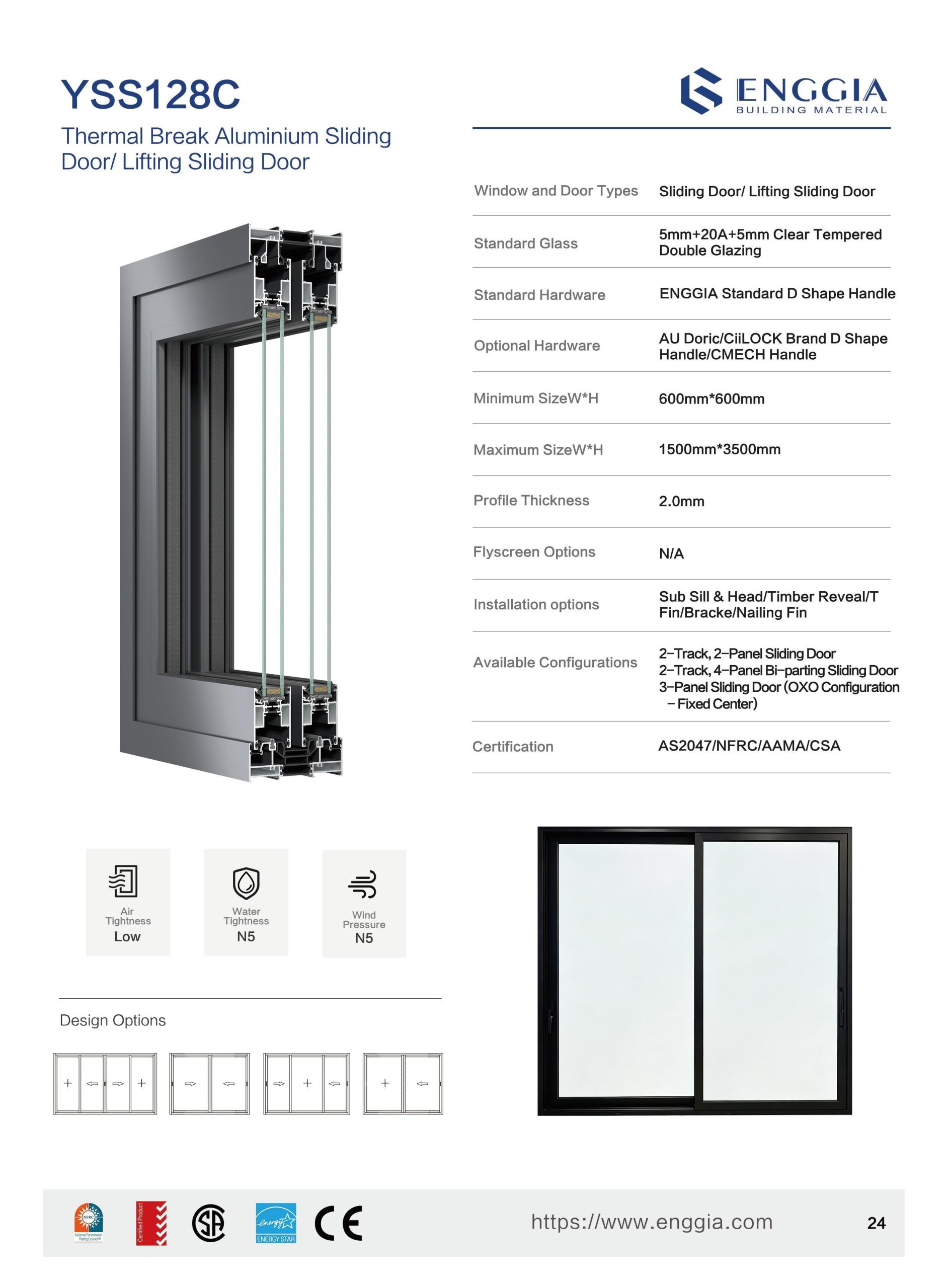

Technical specifications

Opening type	Sliding / Lift-and-Slide Door
Standard glass	5mm+20A+5mm clear tempered double glazing
Standard hardware	ENGGIA standard D-shaped handle
Optional hardware	AU Doric / CiiLOCK D-shaped handle / CMECH handle
Minimum size (W × H)	600mm × 600mm
Maximum size (W × H)	1500mm × 3500mm
Profile thickness	2.0mm
Flyscreen options	N/A
Installation options	Sub-sill & head / timber reveal / T-fin / bracket / nailing fin
Available configurations	2-track 2-panel / 2-track 4-panel bi-parting / 3-panel OXO with fixed center
Standards listed in catalog	AS2047 / NFRC / AAMA / CSA

Plan the details

Configuration options

Confirm the opening arrangement, frame finish, glazing and hardware for this model. Use the listed catalogue parameters as a starting point and approve the final configuration with your quotation.

Packing & delivery

Agree the packing method, opening labels, delivery destination, unloading access and storage arrangements before dispatch. The quotation and order documents define the agreed delivery scope.

Installation planning

Ask your installer to review the approved drawings, opening dimensions, fixing, perimeter sealing and drainage details before production. Use the instructions applicable to the supplied system.

Frequently asked questions

Can the configuration be customised?
Available options depend on the selected system. Confirm the dimensions, finish, glass and hardware with the ENGGIA team.

Which performance values apply?
Use documentation for the exact proposed configuration, rather than assuming all options share the same performance.

How do I request a quotation?
Send the opening schedule, project location and required configuration through the enquiry form.
